Proseptic® compact domestic wastewater treatment plants designed by SBR (Sequencing Batch Reactor) activated sludge process, a fill and draw activated–sludge treatment process. Proseptic systems serves with the capacity range of 10 m3/day - 1000 m3/day capacity
The Sequencing Batch Reactor (SBR) is an activated sludge process designed to operate under non-steady conditions as % 90 capacity changing. SBR tank carries out the functions of 3 phase, equalization aeration and sedimentation in a time sequence in the same tank.
Entirely prefabricated, the compact treatment units are of portable sizes and aesthetical appearance.
Compact Treatment Units are manufactured of carbon steel formed at appropriate thickness, and surfaces are finished with two coats of mastic epoxy paint after sandblasting process to provide anticorrosive effect.
Even in variable wastewater capacities, the system is capable of yielding output water conforming to the Standard Values for Discharge of Household Wastes to the Receiving Medium under the “Regulation Governing the Control of Water Pollution”. The output water of the compact treatment plant may be used for the irrigation of gardens.
The Compact Treatment - Plant treats wastewaters by a Biologic System employing a microorganism community called active smudge. As excess process smudge to be produced in the compact treatment unit is mineralized, it may be sucked by means of a sewage truck at 4-5 month intervals based upon the pollution rate of the input water or employed as a fertilizer in case the medium allows.
Compact treatment units - plants are covered under service and maintenance warranty. Our company provides replacement parts and technical service for the subsequent years.

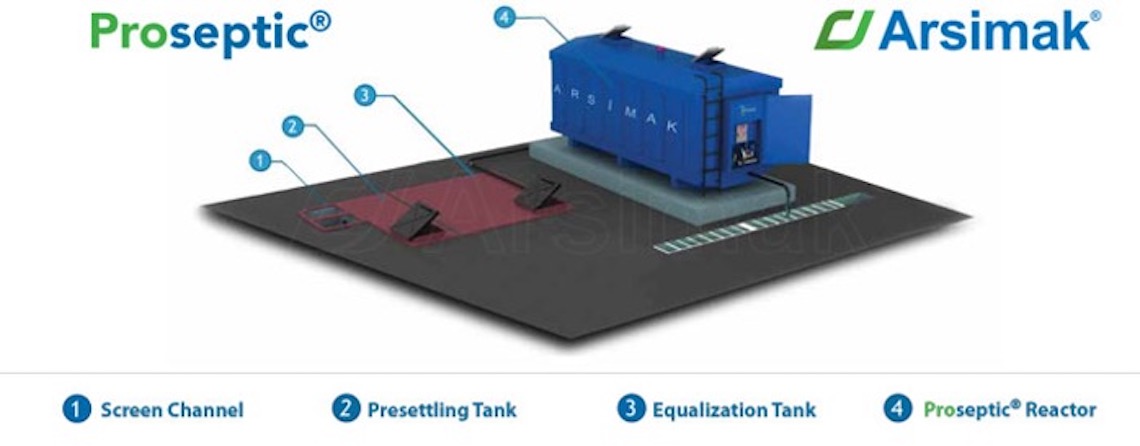

Proseptic® Flow Diagram Compact Package WWTP Units
- Screen channel dimensions for intake structure will be ( B:50x L:100x H:70 cm)
- Existing septic tanks can be used instead of equalization and presettling concrete tanks.
- Arsimak recommends concrete platform for compact systems to set on.
- According to customer requirements treated water tank can be added to Proseptic units.
- For special projects that wastewater flow not known and projects such as hospital and touristic projects please contact with our sales engineer for Proseptic® unit selection.

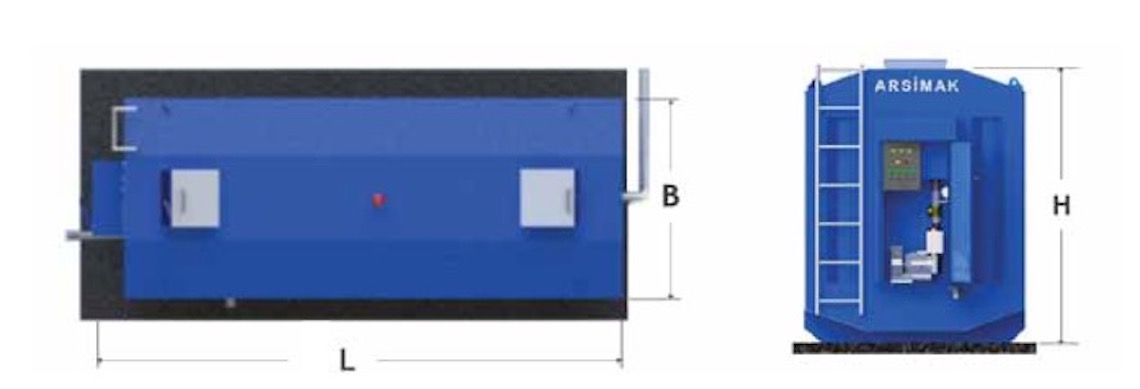

- Dimension on this table above can be changed by Arsimak without any notification.
- Summer housing developments
- Holiday villages
- Housings and mass housings
- Factories and Industrial Facilities
- Villages, towns and Municipalities
- Schools, Hospitals and Military Facilities
- Accommodation Facilities and Restaurants
- Temporary locations such as construction sites
- Recreational facilities Camps
- Villages, towns and Municipalities
AREAS OF USING PACKAGE TREATMENT PLANTS
- Fully automatic operation
- Minimum maintenance
- Modular design allows expansion
- Advanced Processing Technology
- High Treatment Efficiency
- Low Initial Investment and Operating Cost
- Compact Layout
- Silent and Odorless operation
- Quick installation and start up
